2.2.7. IOS

2.2.7.1. On a jailbroken device



  • Download a .deb from download.navit-project.org/navit/iphone/svn/

  • copy the .deb via sftp to /var/root/Media/Cydia/AutoInstall/

  • reboot to install the .deb

  • copy a map to /var/mobile/Media/Maps

  • find your navit.xml file. Mine was in /private/var/stash/_.c3HQr7/Applications/Navit.app/share/navit/navit.xml

  • edit this file to fix the map path, which should be

Results on git revision f1045d4 (Jun 14, 2016) : What works:

  • vehicle position

  • map loading

  • routing works, tested using OSM maps

What does not work:

  • entering the search menu makes Navit crash. Probably a locale setting

  • entering fullscreen mode makes Navit crash

2.2.7.2. Home made packages on OSX

Prepare your build environment :

  • you will need the xocde command line : xcode-select –install

  • brew install cmake

  • brew install gettext

  • brew link –force gettext

You will also need a converter for the svg’s

cmake -G Xcode ../navit-trunk -DCMAKE_TOOLCHAIN_FILE=Toolchain/xcode-iphone.cmake -DUSE_PLUGINS=0 -DBUILD_MAPTOOL=0 -DSAMPLE_MAP=0 -DXSLTS=iphone

xcodebuild -configuration RelWithDebInfo (or import it into the xcode gui to proceed and have more configuration options)

Use the path to your sources for ../navit-trunk in the cmake command

revealing the following problems :

building and running it on sdk>=8 leads to ERROR: org.navitproject.navit is depending on legacy on-demand authorization, which is not supported for new apps

some workarounds were inserted in https://github.com/navit-gps/navit/tree/iOS_9.3_hacks

Configure with cmake and then import it in the xcode gui. Add -lz to other linker flags for the navit target as a workaround for the *.tbd issue Now you can select the iPhone4s or 5 simulator as target device and build it, you can also sideload it to a 4s or 5 connected physical device and no jailbreaking required. Installing maps is supposed to be possible with iTunes.

If you try to build it for an arm64 device, all the implicit declarations become errors. They are all related to the code in support/glib, but when each of them is fixed the build also works for arm64. Testing on 4s and 5 iPhoneSimulator iOS 9.3 revealed search, routing and navigation to be working. This can probably be built for and used down to iOS 8.0 because no sdk tests were added to the workarounds for lower SDK’s. No signing certificate is needed to sideload it onto a physically connected device. Supposedly maps can be installed with iTunes.

2.2.7.3. Old content kept below for reference until we fix the build

2.2.7.3.1. Screenshots and Videos

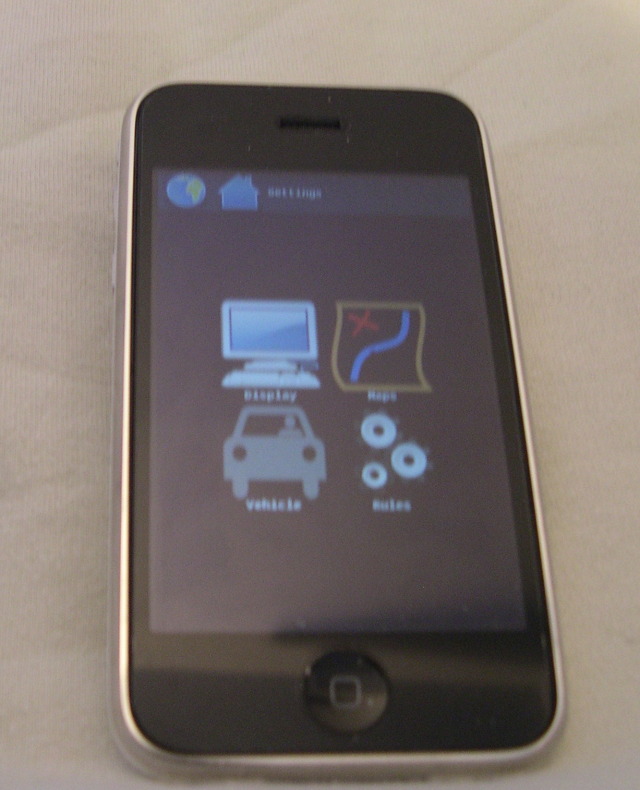

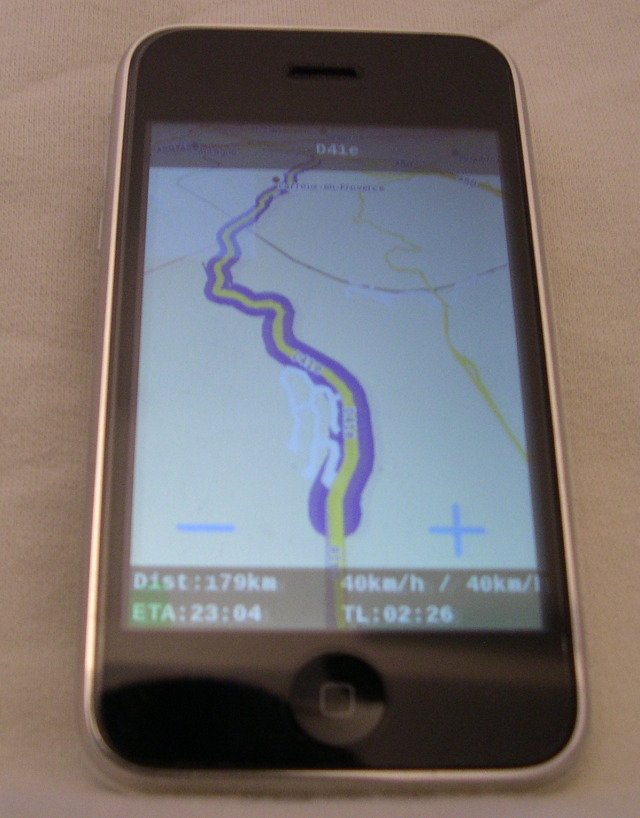

Iphone_screen1.jpg Iphone_screen2.jpg

2.2.7.3.2. Status

2.2.7.3.2.1. What works

  • Routing

  • GPS updates

  • OSM maps

  • Speech

  • Track logs

  • Landscape/Portrait mode

2.2.7.3.2.2. What does not

  • speech (play failure since 3.0)

2.2.7.3.2.3. What was not tested

  • Garmin maps (Last binary includes Garmin driver but not tested …)

  • Others maps

2.2.7.3.3. Concerning Opentoolchain

2.2.7.3.3.1. Cydia packages

Temporarily, Packages are available through this below repository:

``main````````(r2307)``: ``\ ```http://download.navit-project.org/navit/iphone/cydia/ <http://download.navit-project.org/navit/iphone/cydia/>`__`` ``

From Cydia go to Manage > Sources > Edit > Add and add one of the above URL there. Then Search->”navit”, install it .

By default, navit is expecting OSM maps:

/var/mobile/Media/Maps/eu.bin
or
/var/mobile/Media/Maps/planet.bin

For example, you can either use:

  • iphone terminal and wget:

iphone$ cd /var/mobile/Media
iphone$ mkdir Maps
iphone$ cd Maps
iphone$ wget ``\ ```http://maps.navit-project.org/planet.bin <http://maps.navit-project.org/planet.bin>`__

Or

  • openssh

PC$ wget ``\ ```http://maps.navit-project.org/planet.bin <http://maps.navit-project.org/planet.bin>`__
PC$ scp planet.bin root@xxx.xxx.xxx.xxx:/var/mobile/Media/Maps/planet.bin

xxx.xxx.xxx.xxx is the ip of your iphone.

enjoy having your free GPS on your iPhone.

2.2.7.3.3.2. Home made packages

I assume that your cross-compiler is ready and that you are able to generate telesphoreo packages.

  • Cross-compiler: 1

  • Telesphoreo: 2

svn co ``\ ```http://svn.telesphoreo.org/trunk <http://svn.telesphoreo.org/trunk>`__``  ``
export PATH=$PATH:$WHEREIS_YOUR_TOOLCHAIN/toolchain/pre/bin
export PKG_BASE=~/WHEREIS_TELESPHOREO/trunk
export PKG_ARCH=iphoneos-arm
export PKG_CONFIG_LIBDIR=~/
2.2.7.3.3.2.1. Libraries

First you will need to compile below libraries:

  • FreeType

  • FontConfig

  • SDL

  • SDL_image

  • Png

  • ImageMagick

  • Jpeg6b (optional)

  • Tiff (optional)

Png, tiff, Imagemagick are already available on telesphoreo which is the APT-based distribution of Unix software for modern smartphones started by Jay Freeman (saurik). So you can download it from Cydia. For others, you will find all necessary telesphoreo patches on below ticket: 3

`` patch -p0 < sdl_ft_fc_jpg_new_packages_telesphoreo.diff``

Then we can deal with Navit code.

2.2.7.3.4. Config

OSM map files are expected as below:

/var/mobile/Media/Maps/eu.bin
/var/mobile/Media/Maps/planet.bin

A new navit.xml can be copied into /var/mobile/.navit/

2.2.7.3.4.1. Video

Frame and bpp options have been added

2.2.7.3.4.2. Speech

Get festival library + Erica utilities on Cydia. Then change your speech configuration in “/var/mobile/.navit/navit.xml” to

`` ``

2.2.7.3.5. Test feedback

  • OSM: Routing is very slow (long distance is a nightmare for user :() (Almost fixed with CACHE_SIZE define)
